Pentamatic Microscope Adapter – 1960

I have yet to use a microscope adapter in nearly 50 years of 35mm photography – but that doesn’t mean that I haven’t collected them and enjoyed the thought of someday using one. I’ve had a few Canon adapters over the years too.

The first step would be actively looking for a microscope to purchase on one of the many online auction sites. Something I will do.

Here’s a nice adapter from Yashica with the Pentamatic bayonet mount. It’s one of the first accessories to appear in the early Pentamatic instruction booklets from 1960. List price was ¥2,500 which was fairly expensive back in the day.

DSCF9889

The adapter mounts directly to the body of the camera – no lens needed.

p1 acc page

A scan from an early Pentamatic sales brochure.

DSCF9890

DSCF9893

These instructions are from a later booklet featuring the adapter for the M42 screw mount.

DSCF9892

DSCF9895

I believe that the microscope depicted here is a Yashima microscope but it’s not made by Yashica. Yashima was the first name that Yashica went by in the early 1950s.

d302624294.1

Not made by Yashica but still a super cool vintage microscope.

22533200692_c8120c1a4e_o

Typically you’d use a right angle finder such as this one to make it a bit easier to use the adapter on a microscope.

What’s always amazed me is just how many different camera manufacturers made microscope adapters – Canon, Olympus, Nikon just to name a few and how many are still available for purchase online from various auction sites that are unused, still new in their boxes.

22366435879_1e932f39ba_o

Thanks for stopping by! – Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

Nicca Pentamatic!?

Stay with us and we’ll try to make our case. Recently discovered information has filled-in some of the missing links in the development of our favorite obsession camera. The mysterious and seldom seen Pentamatic ’35’… Yashica’s first SLR.

dscf2740

A few interesting bits of info have come to our attention recently. We were alerted to an auction by our friend Paul Sokk (http://www.yashicatlr.com) that listed a 13.5 cm f/ 2.8 lens made by Taiho Optical Company –  Nicca Lens. Having never heard of the company, Taiho Optical, and knowing about Nicca’s history, we couldn’t figure out where and how there could be a Nicca connection.

taiho_optical_co_nicca_135mm_f28_04

Let’s backtrack a bit with a quick history lesson. Yashima-Yashica was a very successful maker of high quality, low-cost twin-lens reflex cameras but hadn’t moved into the 35 mm market as of early 1957. It appears that the president and founder of Yashima-Yashica, Mr. Yoshimasa Ushiyama could see that although Yashica was successful building TLRs, the market for them would slowly diminish as new, smaller and easier to use 35 mm cameras would grab the marketplace. He wanted in but how?

Yashica had no experience with 35 mm cameras, especially rangefinder cameras with cloth focal-plane shutters. There were dozens of Leica copy cameras in Japan (and the world for that matter) but possible patents protected specific manufacturer’s shutter designs. If he could buy into an established company then he could use their shutter design and incorporate it with early Yashima-Yashica designs. In May of 1958, an opportunity presented itself. Nicca Camera Company was apparently experiencing financial difficulties and may have been on the brink of bankruptcy. Nicca cameras were well known and well respected – they made high quality 35 mm rangefinder cameras with focal-plane shutters. They used Nikkor lenses with the L39 screw mount. Mr. Ushiyama was in a rush to purchase Nicca before they went belly up. Advisers cautioned to wait until Nicca went bankrupt arguing that they would be able to acquire it for a better price. Mr. Ushiyama knew that that outcome of a bankruptcy could take longer than he was willing to wait and there would certainly be more suitors to compete with. So the deal went through… sort of. As best as we can glean from our research, a “religionist” “admonished” Mr. Ushiyama for rushing into the deal and cautioned that Yashica itself would suffer a “decline” if all of the transfer were made immediately.

record-image_939x-h3sn-v1

OK, OK! We give!!! We share your feelings dear reader –  what’s the connection between Nicca and the Pentamatic? Taking the advice of the religionist, Mr. Ushiyama created a new company. Nicca would become Taiho Optical Company. Say what? Nicca wasn’t absorbed into Yashica in May of 1958, instead, they became another company that could continue to operate with Yashica but without becoming Yashica. Simple. Confused? Mr. Ushiyama listened to his adviser so nothing bad happened. It appears that the former Nicca employees were now free to develop new processes and designs with the financial and technical support of the much larger Yashica. What did Yashica get for its money? Plenty it would seem. Access to years of 35 mm rangefinder manufacturing experience and access to a proven focal-plane shutter. Important steps in building a 35 mm single-lens reflex camera. We don’t know (yet) which one of the two companies came up with the design of what would become the Pentamatic. Was it mostly a Yashica design that had been kicking around for a while lacking a focal-plane shutter, or was it mostly a Nicca design that lacked the financial means to bring it to market? We feel that it was more than likely a 60 – 40 split with Nicca as the 60%. Just a hunch, no facts at the moment.

Yas Cover P1 bro (1)

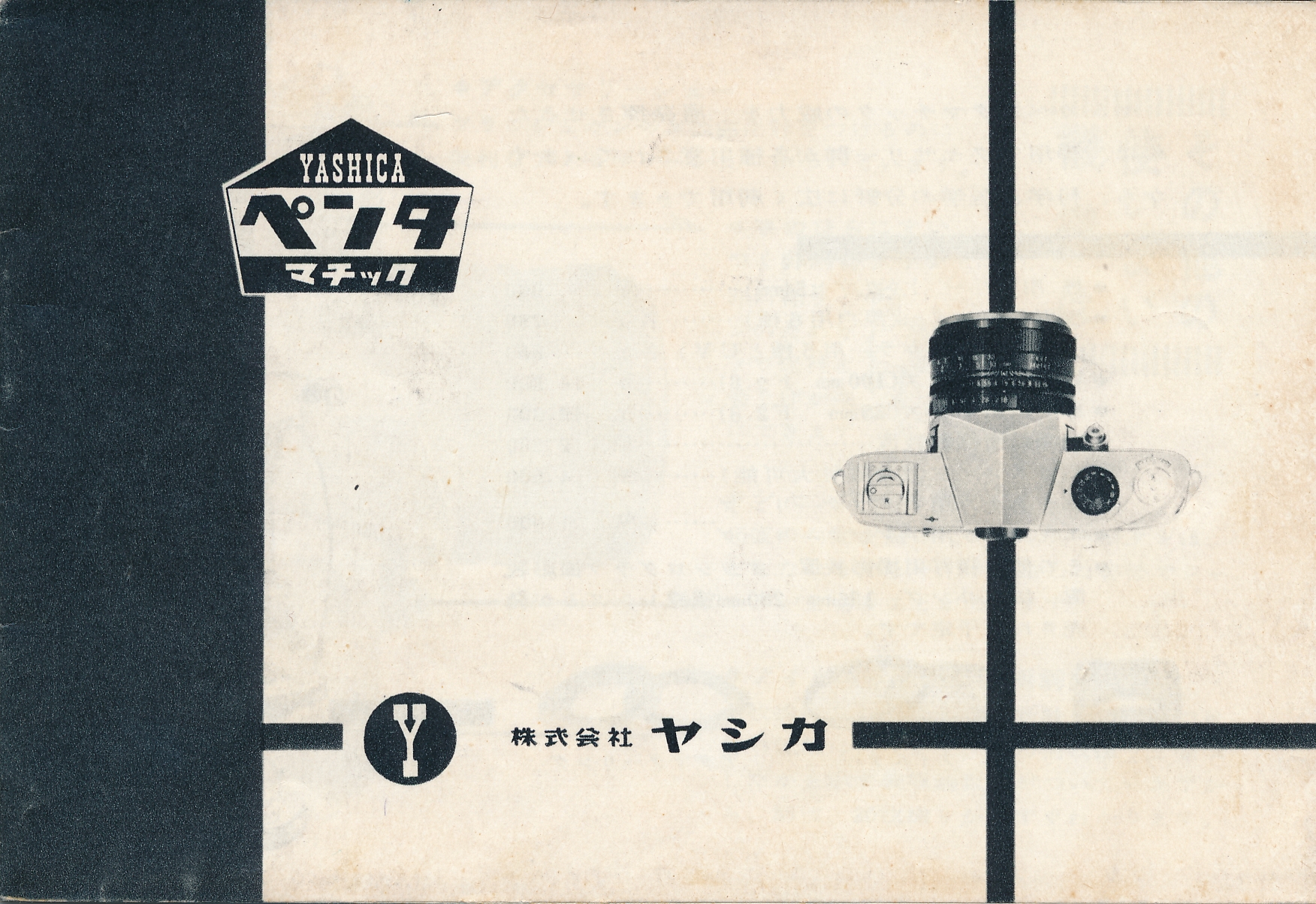

Earliest known sales brochure for the Pentamatic ’35’. The best guess is that it was printed in the Spring of 1960.

Yas inside P1 bro

A machine translation of this page from inside of the brochure states clearly that Nicca and Yashica developed the Pentamatic.

dscf2743

But what did the Taiho Optical Company make? Yashica didn’t make their own lenses, Tomioka Optical of Tokyo did. Was the former Nicca, now that it had become Taiho Optical, going to suddenly start making lenses? At the start of this blog, we mentioned that we were alerted to the existence of a 13.5 cm lens for sale with the Taiho Optical Company-Nicca Japan markings. Other than that, nothing.

So when did Mr. Ushiyama merge the two companies? He apparently listed to his adviser and waited eight long years before merging the two. From 1960 (when the Pentamatic was released) until 1968, when he not only made Yashica whole, but he also acquired long time lens supplier Tomioka Optical.

Now we know how the Pentamatic came to be and why it could be called the Nicca Pentamatic.

dscf2748

Thanks for sticking with us. – Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

The Yashica Pentamatic – Our 8 Year Search – Some Conclusions & Wild Speculations

20171125_133916 (2)

Some Conclusions

The first Pentamatic was “born” in December 1959 but wasn’t available for sale in the U.S. until April 1960. The Pentamatic was Yashica’s first 35mm single-lens reflex camera and was designed with the help of technology obtained from Yashica’s acquisition of Nicca Camera in 1958 and with some involvement with designers from Zunow Optical in 1959. Of course, Yashica designers were involved too as well as collaboration with Tomioka Optical for the first lenses.

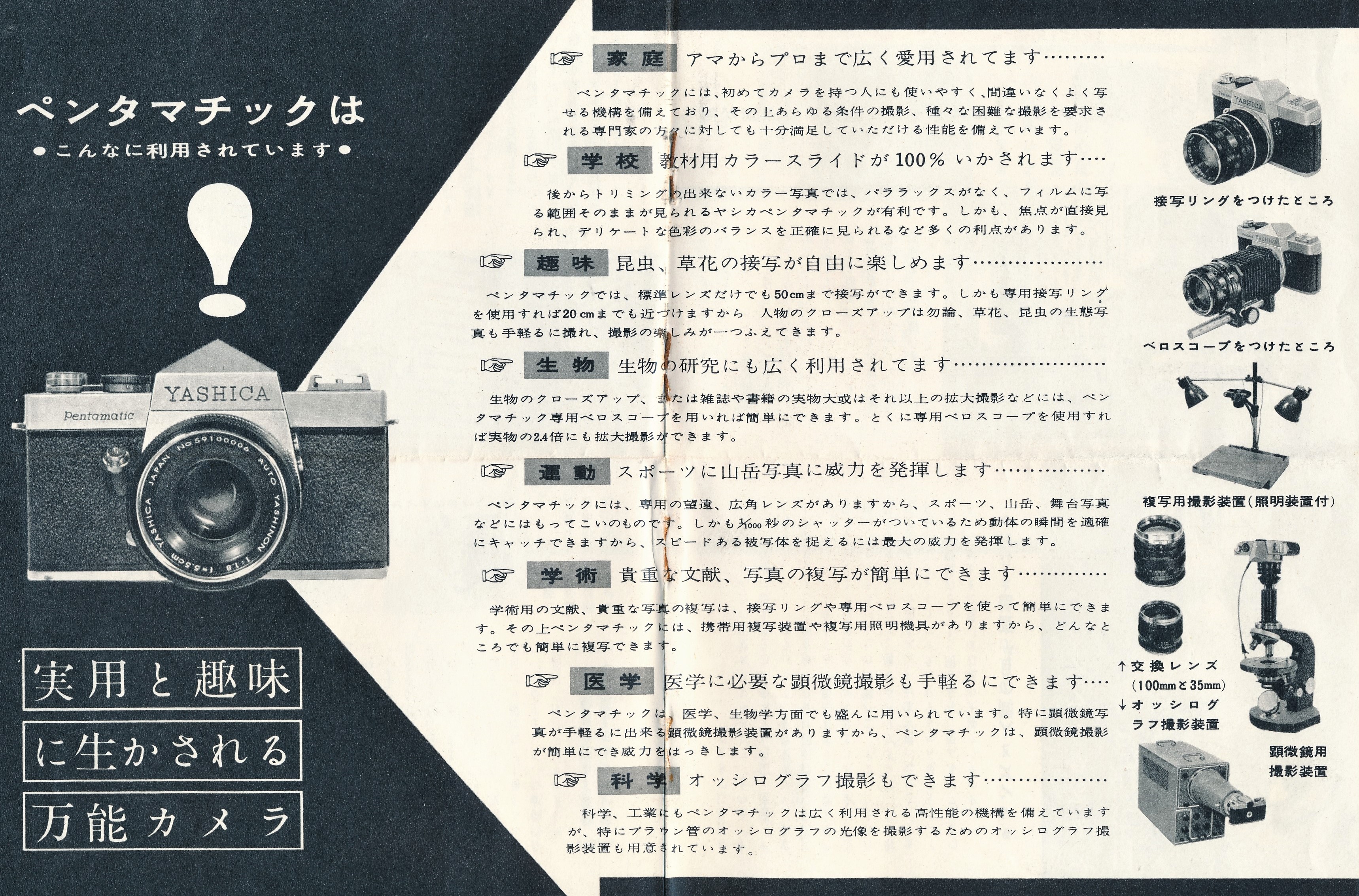

Below is a scan of what appears to be the first sales brochure for the Pentamatic found in Japanese. A machine translation of it proves that Yashica and Nicca designers worked together to jointly develop the camera over a 3-year period. The exact date of this brochure has not been established but it appears to be at least issued in the Spring of 1960. Many thanks to my good friend Paul Sokk for his efforts in researching the Pentamatic with me over the years. His fabulous site can be found at www.yashicatlr.com

Yas inside P1 bro

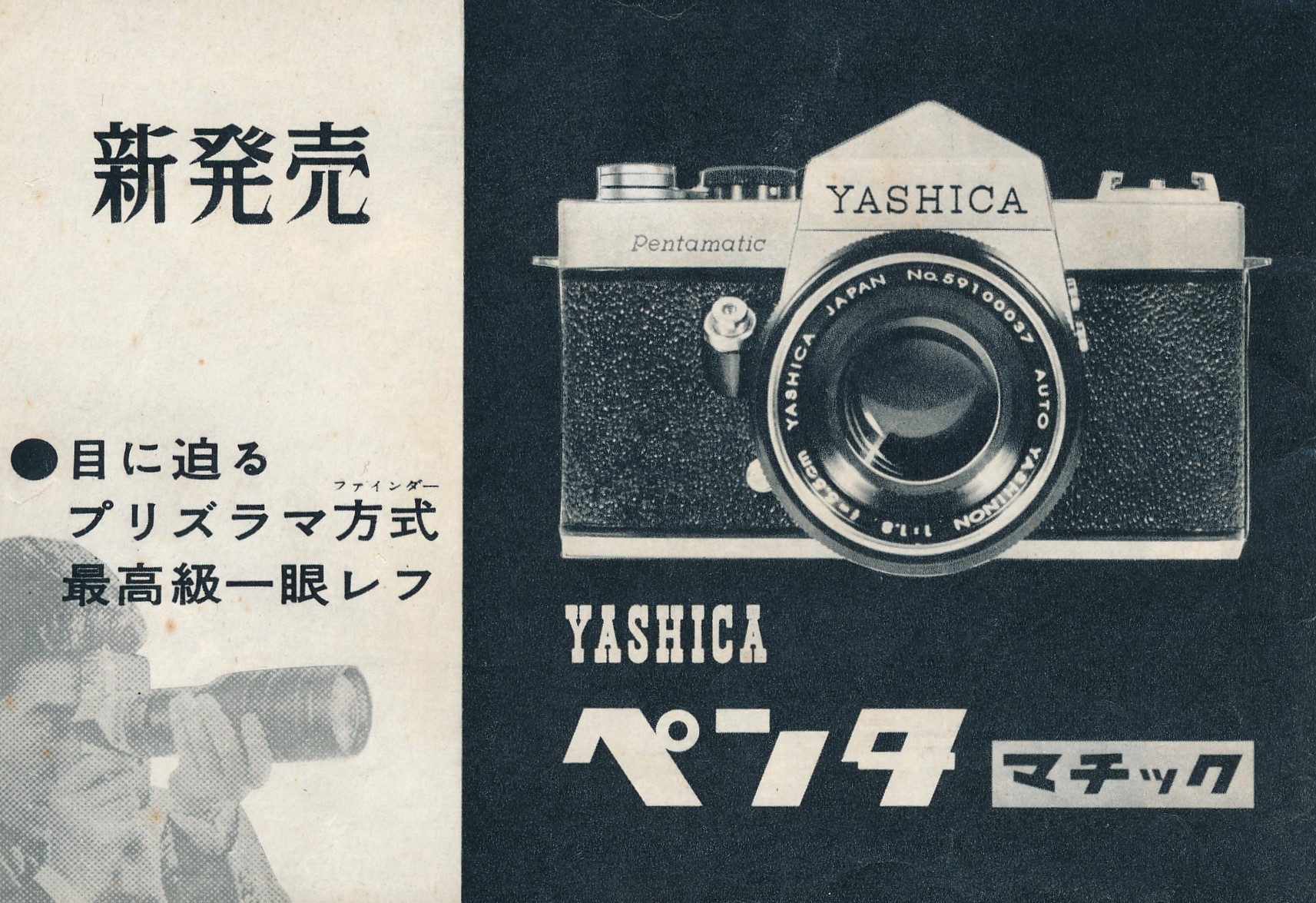

Below is a scan of the cover of that first sales brochure that features the new Pentamatic.

Yas Cover P1 bro (1)

The original Pentamatic was a failure. A beautiful, sleek and modern camera at a great price, but still a failure. A replacement for it (Pentamatic II) was released by September 1960 – just a few short months after the original Pentamatic debuted.

The Pentamatic and the Pentamatic II were both out of production by January 1961. The Pentamatic S didn’t appear until around April 1961. Little was significantly changed over the course of these 3 models during this short timeframe. The Pentamatic II and its one-off lens improved on its semi-automatic capabilities. The body stayed the same with the exception of adding the engraved “II” after the name. No logic to this as Yashica could have simply made the new lens available as an option to the original Pentamatic. There had to be another reason to call it the model II and it appears that there were some internal changes made to accommodate the new lens.

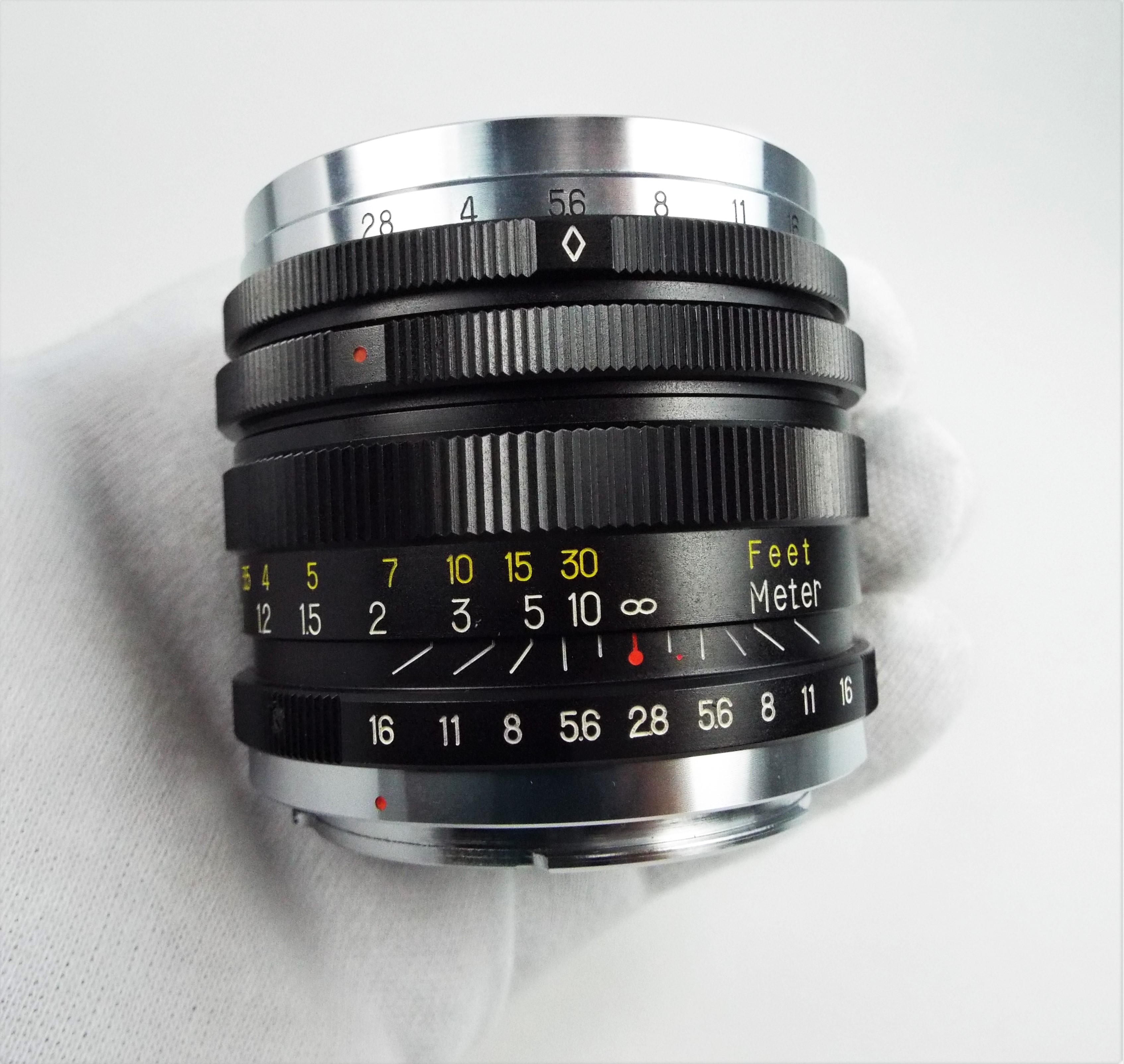

The standard lens that was available for the Pentamatic II was designed and built (quickly?) by Zunow vice Tomioka. Our best guess at this point.

The Pentamatic II was only available for sale in Japan.

The Pentamatic S essentially was the replacement for the original Pentamatic – not the Pentamatic II. The model S added a lug for attaching an accessory exposure meter that coupled to the shutter speed dial. The S also added a self-timer and the body got a redesign (the strap lugs were moved to the front and the shutter release button was no longer at a 45-degree angle).

The Instruction Booklets

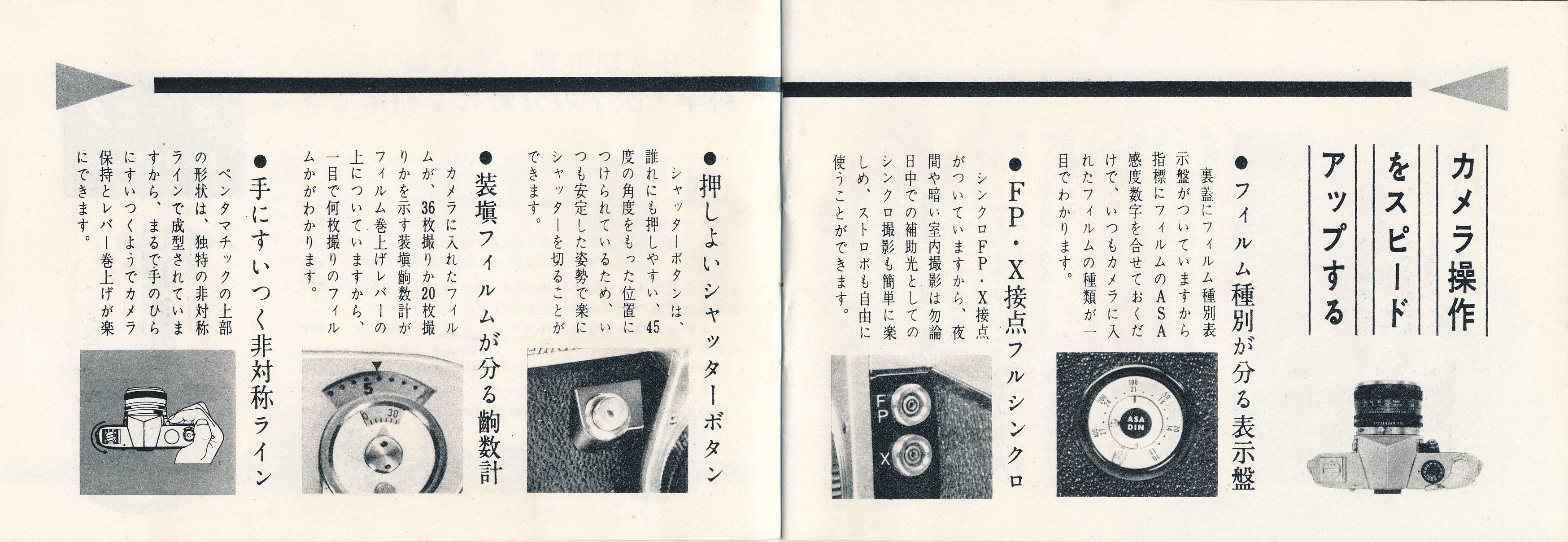

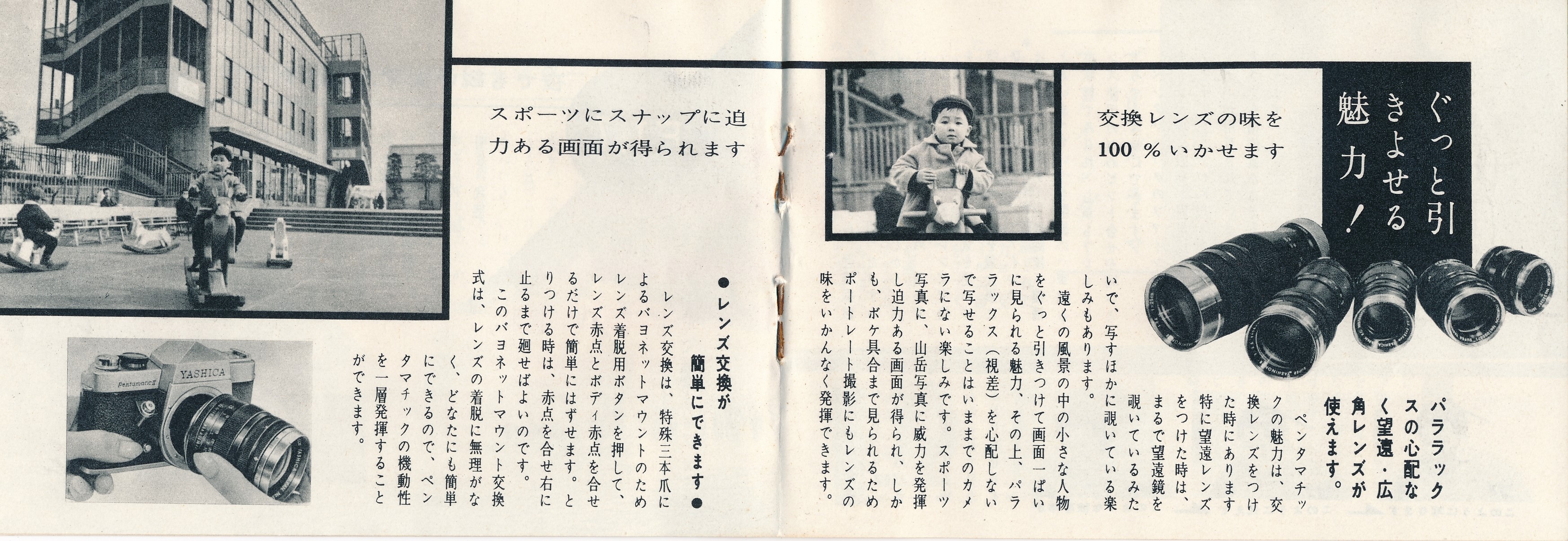

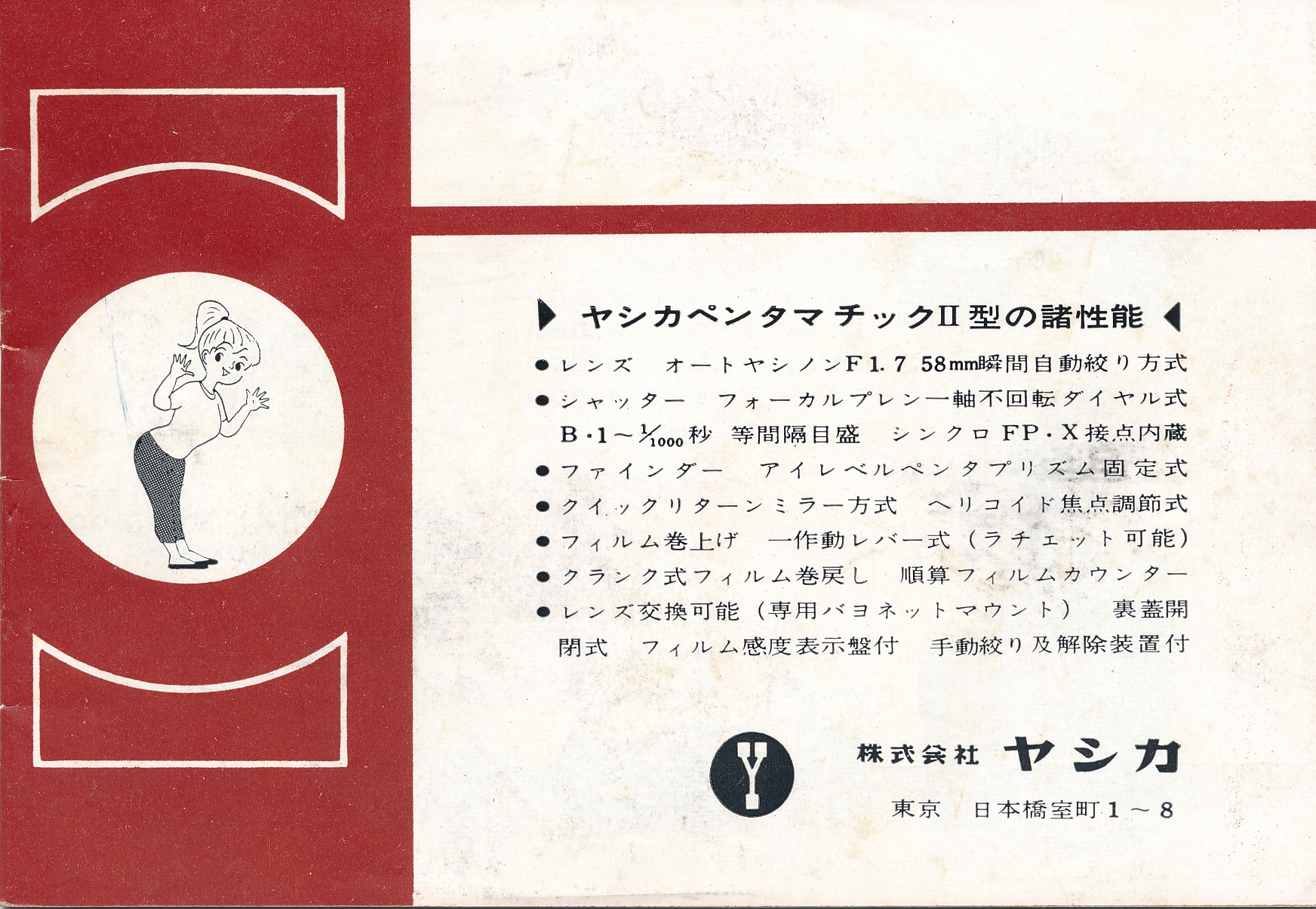

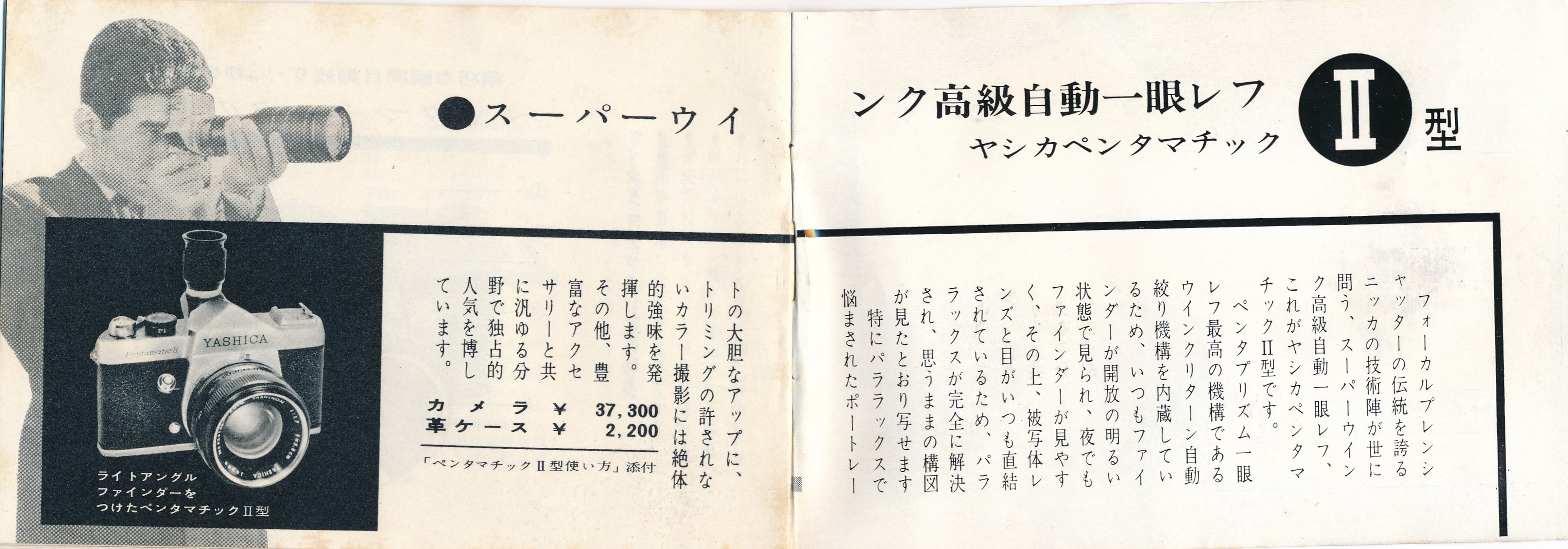

The booklets have been an additional source of fun separate from the camera searches. The booklet for the original Pentamatic was relatively easy to find. The first Pentamatic saw about 16,000 units made so the booklet is much more available. The Pentamatic II booklet was the hardest to locate since only around 5,000 cameras were made. The Pentamatic S booklet is even rarer – only around 3,000 cameras produced.

DSCF6534

DSCF6540

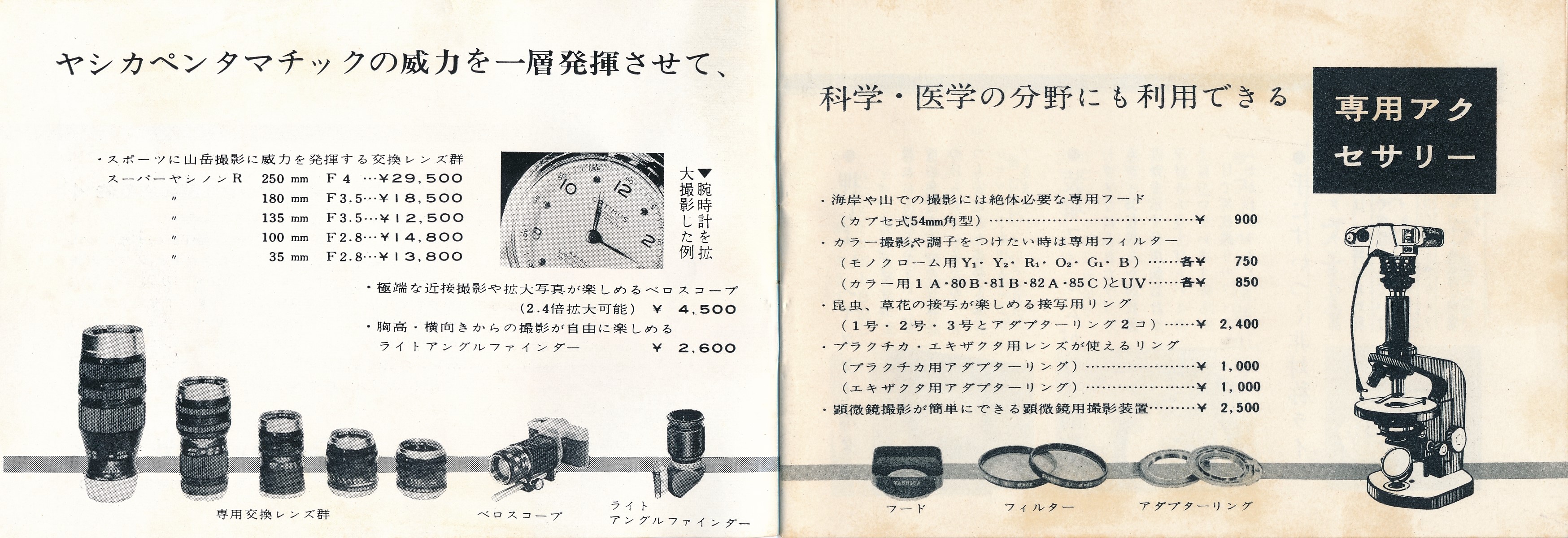

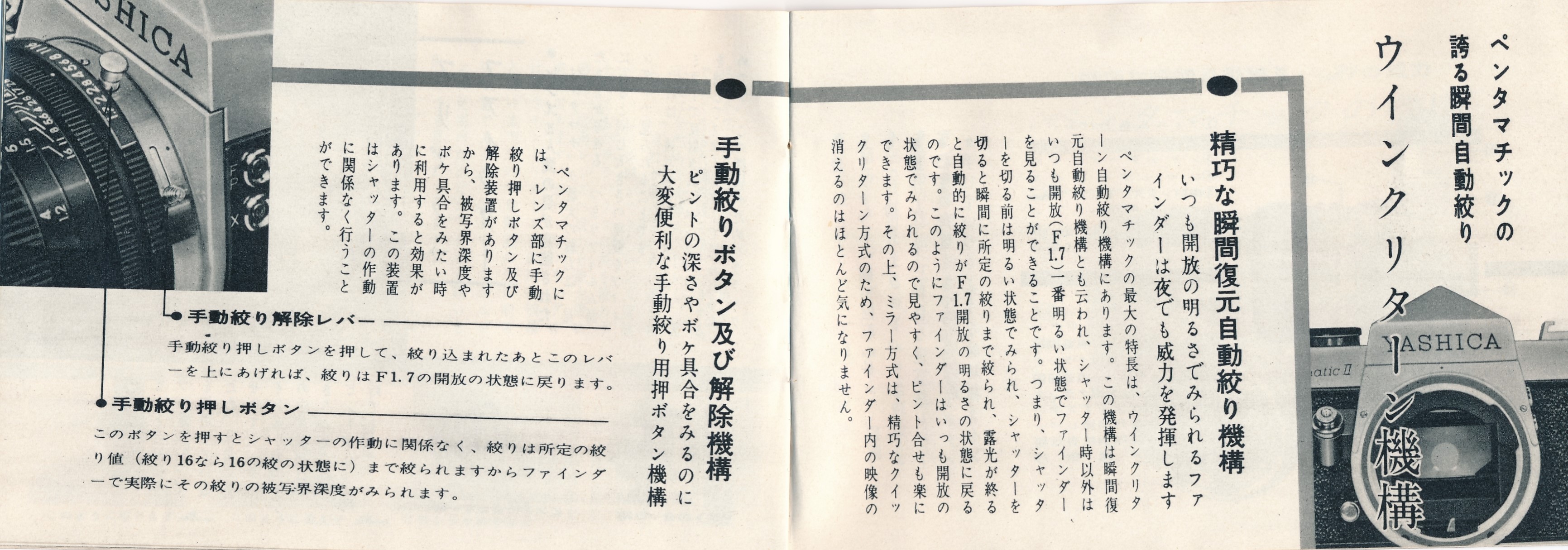

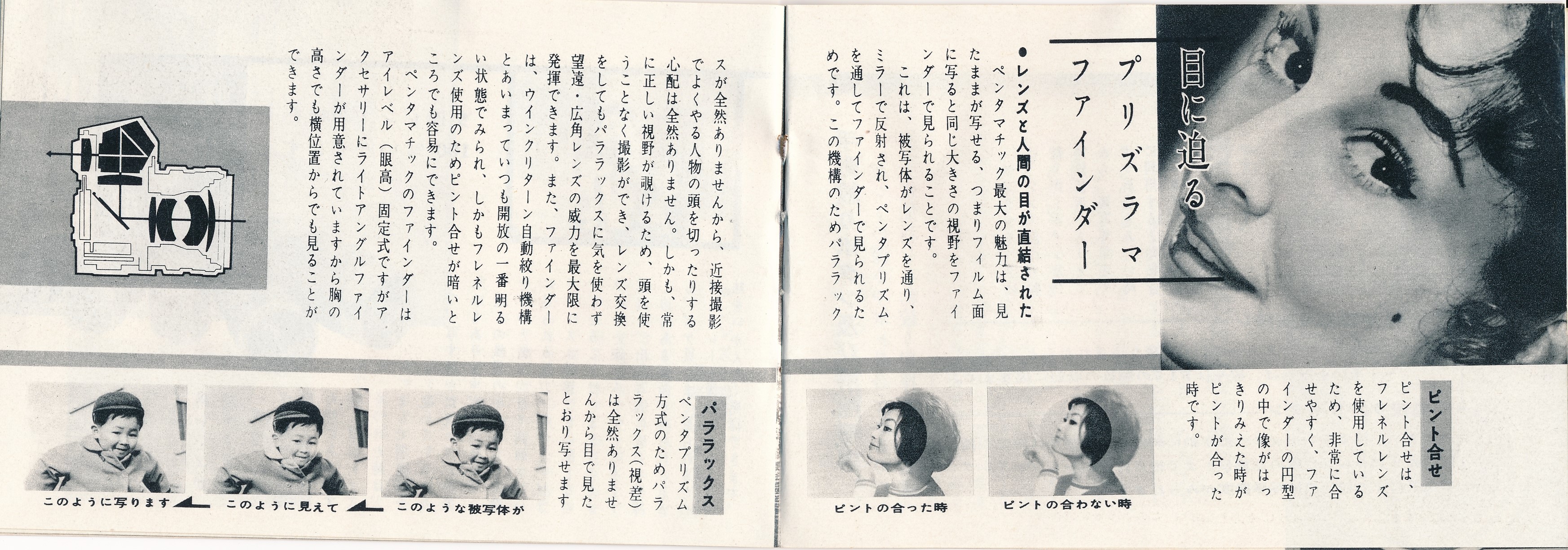

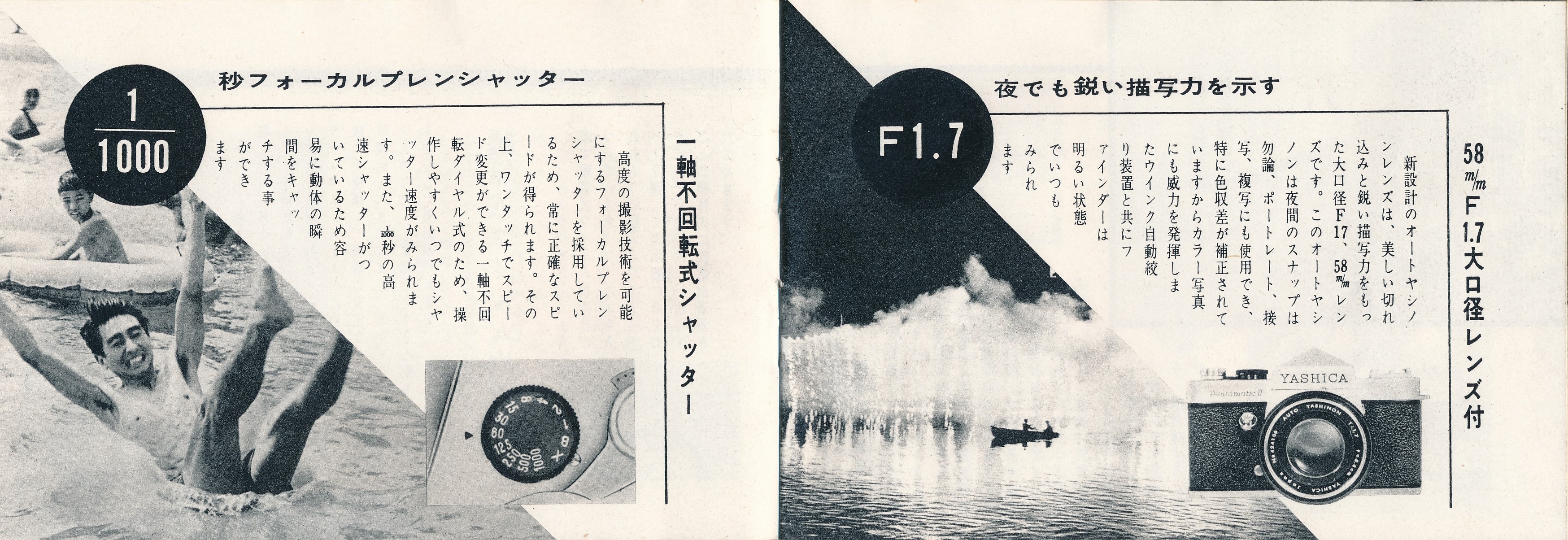

Inside the booklets…

DSCF6543

DSCF6545

DSCF6544

Wild Speculations

Wild Spec 1 – The first Pentamatic was not initially released in Japan. Yashica had a slow go with its early production so only a limited number were available for the April to June debut in the U.S. There were only about 4,000 cameras made by then and that just didn’t support a wide release of it in their home market. However, with the discovery of the as yet undated sales brochure found by my friend Paul Sokk it does appear that some of the first Pentamatics were in fact distributed in Japan. We do feel that Yashica had a suspicion that the original model would not go over well at home. Why do we feel this way? During our quest of all things Pentamatic, we’ve yet to find an instruction booklet for the original Pentamatic in Japanese (or any other language besides English). We’ve seen no early 1960s advertisements either. Although we’ve yet to find these items that does not mean they don’t exist.

Wild Spec 2 – The Pentamatic II was only available in Japan and was never intended for widespread availability in the world marketplace. We further feel that the Pentamatic II was the camera Yashica intended to release in Japan vice the original Pentamatic. Why? Same thing… in over 8 years of searching, we’ve never seen a Pentamatic II instruction booklet in English and the only sales brochures we have are in Japanese. No English ads or brochures anywhere (yet). Update: As of April 2019 still no English ads or books.

Wild Spec 3 – The Pentamatic S wasn’t available in Japan. Crazy right? The same thing applies here – no Japanese advertising or brochures and no instruction booklets in anything but English. Again, not finding them does not translate to not being produced but the likelihood looks slim.

Wild Spec 4 – As we stated in the conclusions section above, the standard lens for the Pentamatic II (5.8cm f/1.7) was made for Yashica by Zunow Optical vice Tomioka. This flies in the face of what’s known and we don’t have solid written proof (yet, if ever). Both the original Pentamatic and the Pentamatic II ended production in January 1961. By coincidence, that’s the reported date of Yashica’s acquisition of Zunow (or their bankruptcy). Once Zunow went bust they no longer make lenses for the Pentamatic II.

Wild Spec 5 – Once the Pentamatic II stopped production, Yashica started selling the original Pentamatic in Japan (or at least increased its availability in Japan). We would still like to find a Pentamatic instruction booklet in Japanese to validate this thought.

Wild Spec 6 – Since the Pentamatic S wasn’t sold in Japan, there was a rather large gap in Yashica’s SLR availability. The next camera to be sold widely in Japan (and the U.S.) was the Penta J but that didn’t come out until the Summer of 1961.

These marketing and production missteps led to a less than stellar debut for Yashica in the world of 35mm SLRs. The competition during this same period was “inventing” much more sophisticated (and mostly more expensive) cameras which had a wider range of interchangeable lenses and accessories. It took Yashica a long time to establish a “foot in the door” with their Penta J and their first internally coupled exposure metered SLR, the Yashica J-3 (Jaguar).

Things we would like to find…

600x450-2015111900010

The first thing we would like to discover would be an ad, sales brochure or instruction booklet in English for the Pentamatic II. We don’t think we will as we feel that they don’t exist.

We would like to find a Pentamatic instruction booklet in Japanese. They must exist but we’ve yet to find one.

Pentamatic S instruction booklet and a sales brochure in Japanese. Don’t think they exist but time will tell.

Pentamatic II box!!! They must exist – someone’s got to have one in their collection! Update: Finally found one but we missed acquiring it for our collection so we “borrowed” this image –

yashica P2 Box

Pentamatic (any model) in its original boxes in factory fresh condition. WooHoo!

***Solid proof that the standard lens for the Pentamatic II was made by Zunow Optical.***

Other than these things, I think we’re good! ^.^

Thanks for your visit! If you’ve made it this far in the post give yourself a big pat on the back! You just may be on your way to becoming a ‘Yashica Pentamatic Fanatic’!

Please stop by our online shop at https://www.ccstudio2380.com and check out some of our classic cameras available for sale.

We are active buyers of quality cameras and equipment – especially anything Yashica, Nicca, Fujica or whatever! Contact us at chriscarol@ccstudio2380.com

Please stop by our camera shop at http://www.ccstudio2380.com

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

a man, a watch, a camera

24379666406_70ebcb17f7_o (1)

Mr. David Yulee as seen in downtown Fernandina Beach

Yashica Pentamatic S 35mm SLR mated with the sharp 5.8cm f/1.7 lens which I believe was designed by Zunow. No direct written evidence to support that claim but the design cues are clearly more Zunow than Tomioka. The camera is from 1961 and the lens is from 1960.

20186770749_3906ae1138_o (1)

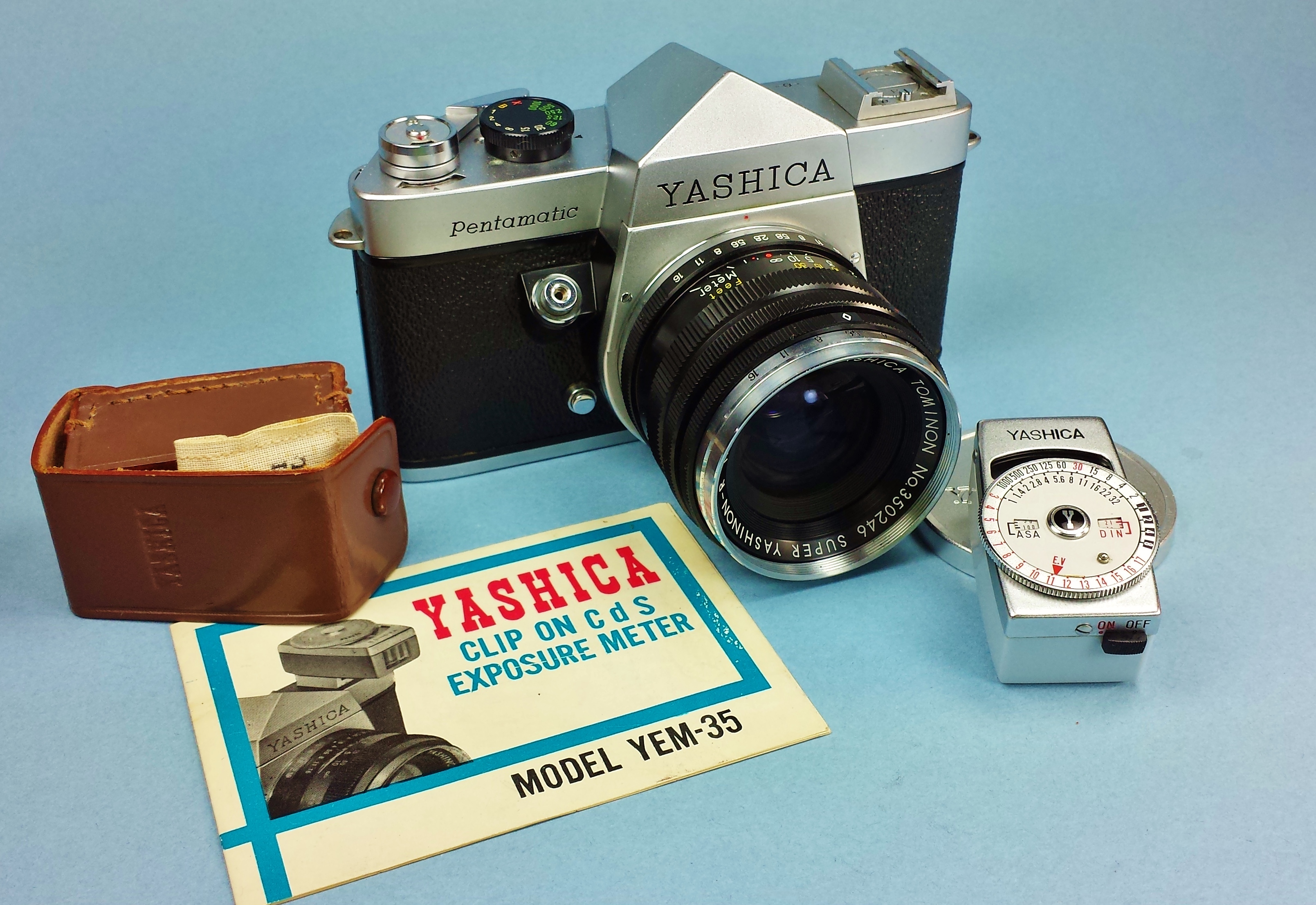

Yashica Pentamatic S with attached exposure meter.

Yashica’s first SLRs represented a steep learning curve for the company.

The original Pentamatic ’35’ was co-designed with Nicca Camera starting in 1958. The camera was groundbreaking for Yashica to be sure but a miss overall against the competition (think Nikon F). Yashica’s best was yet to come. I happen to appreciate the rock-solid construction of this often overlooked camera. The lens was only in production for six months and disappeared from Yashica’s lineup at the same time as Zunow’s demise (January 1961). It was the standard lens for the Pentamatic II. This was not the lens that was supplied with the S – Yashica went back to the 5.5cm, f/1.8

Shot with my Samsung Galaxy S4 – January 2015

Thanks for stopping by and be sure to check out my camera shop at http://www.ccstudio2380.com for some great cameras and photo gear. – Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.



Pentamatic vs. Pentamatic S – Yashica’s Heavyweights

It’s time to revisit this post as it introduces new readers to the “wonders” of the Pentamatic series of SLRs from Yashica. Chris

Yashica Pentamatic Fanatic

The Pentamatic was Yashica’s first single-lens reflex (SLR) and was released in 1960 (May-June) timeframe. The Pentamatic S was released about mid to late 1961. Not much changed between the two – the S model added a built-in self-timer and most notably, a provision for mounting an exposure meter to the top right of the camera that coupled with the shutter speed dial. Other small changes were to add lugs for holding the neck strap (moving them from the extreme right and left sides of the body on the Pentamatic to a more typical front mounting on the S). Unseen from the exterior is a change to the focusing screen inside the pentaprism. The original fresnel screen in the Pentamatic was replaced with a split image screen in the model S. For me, that change makes the Pentamatic S much easier to focus and improves the brightness inside the viewfinder.

View original post 226 more words

Yashica Pentamatic – 1960

Gettin’ its 1960s groove on with a little bit of fun in the studio.

25831138090_6ba21c9c58_o (1)

Yashica ヤシカ Pentamatic ’35’

The Pentamatic was Yashica’s first 35mm single lens reflex (SLR) camera. For a company known for building quality twin lens reflex (TLR) cameras, it was a big step forward for them. It wouldn’t have been possible without the combined expertise of the engineers, designers, and craftspeople from Nicca Camera Company which Yashica had acquired in early 1958.

22809875259_185bf3d0d8_o (1)

The Pentamatic with its placement of the cold shoe on the camera’s left top plate moved this clip on exposure meter away from the shutter button and film advance lever. A much more convenient location.

It’s a uniquely beautiful camera with all sorts of interesting angles and that forward facing shutter release button. (see below) The cold shoe (accessory shoe) wasn’t mounted on top of the pentaprism as was common (well most SLRs didn’t have a cold or hot shoe yet) but instead was located on the upper left side of the camera and combined with the rewind lever. (see above)

25959470461_6afe08f43e_o (1)

That wonderful shutter release button – right where your “trigger” finger wants to be when holding such a heavy camera.

19986174890_c9351aec0e_o

A crop of the full-page ad from the June 1960 issue of Modern Photography. Yashica’s first public advertisement of their new SLR.

24421397892_036c1371dc_o (1)

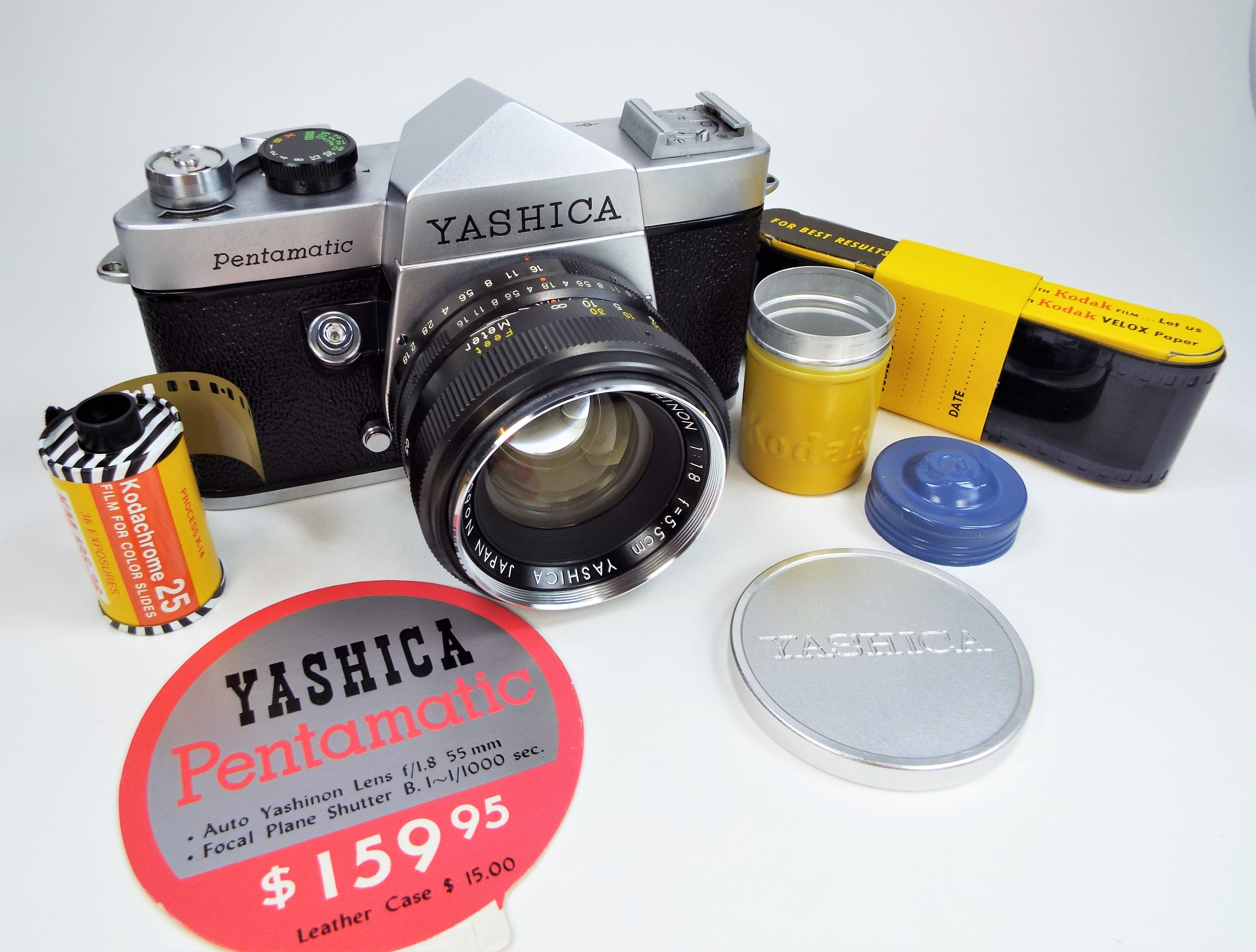

A complete set as it would have come from the factory with the exception of the lens. I swapped out the standard Tomioka made 5.5cm f/1.8 lens for this beauty.

img_1379

Earliest known sales brochure (from Japan) for the Pentamatic. We’re unsure of its exact month of issue but it appears to be at least from the first half of 1960 as it talks about the cooperation between the designers at Nicca and Yashica to bring this camera to market. Many thanks to my good friend Paul Sokk for the kind use of his brochure. For more from Paul, stop by his amazing site at http://www.yashicatlr.com

Thanks for stopping by and hopefully you’ve learned a bit more about this wonderful camera from Yashica. – Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

Nicca Pentamatic!?

This post is worthy of another look. I see some areas that need to be updated with better information. – Chris

Yashica Pentamatic Fanatic

We know… doesn’t make sense does it? Doesn’t even sound right… “Nicca Pentamatic”.

Stay with us and we’ll try to make our case. Recently discovered information has filled-in some of the missing links in the development of our favorite obsession camera. The mysterious and seldom seen Pentamatic ’35’… Yashica’s first SLR.

dscf2740 Nicca 3-F 35 mm rangefinder (left) and Yashica Pentamatic 35 mm single-lens reflex SLR (right).

A few interesting bits of info have come to our attention recently. We were alerted to an auction by our friend Paul Sokk (http://www.yashicatlr.com) that listed a 13.5 cm f/ 2.8 lens made by Taiho Optical Company –  Nicca Lens. Having never heard of the company, Taiho Optical, and knowing about Nicca’s history, we couldn’t figure out where and how there could be a Nicca connection.

niccalensoct27niccalensoct27-2

Let’s backtrack a bit with a quick history lesson. Yashima-Yashica was a very successful…

View original post 672 more words

Time Capsule – 1960

yashica pentamatic set

A nice example of Yashica’s first 35mm SLR – the Pentamatic. Also known as the Pentamatic ’35’. This camera is from August 1960 – the same month that Yashica started production of the Pentamatic II – a model that was destined for the Japanese home market and not for world export. It’s my contention that the original Pentamatic was not available in Japan and that it was initially available only as an export model. By 1961 however, Yashica realized that the Pentamatic was not doing well anywhere so the decision was made to release the Pentamatic (original model) in Japan alongside the Pentamatic II. Odd marketing but that was how Yashica operated – oddly.

As always, thanks for stopping by! – Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2018 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

My First Pentamatic – the quest begins

It was “love” at first sight! Well, kinda like love – more like a very strong attraction.

The starkness of the Pentamatic’s design caught my eye straight away. Here was a Yashica the likes of which I’d never seen before.

I thought I would share a very popular image of my first Yashica Pentamatic. I say popular because it’s been viewed more times than anything else I’ve ever posted on my Flickr page.

yashica p1 in blue

Designed in middle 1959, Yashica’s first 35mm single-lens reflex camera is a stunning beauty. It appears it was a collaborative effort between Yashica and Nicca with some “help” from the designers at Zunow. The first lenses for the Pentamatic were made by Tomioka and most carried the Yashinon name – a few, like this one, sported the Tominon branding along with Yashica’s Yashinon name. By the way, the serial number on this lens is fairly easy to “decode”. The first 2 digits indicate the focal length of the lens – in this instance, the lens is a 3.5cm wide angle so the first digits are “35”. The next 4 digits are a simple production number that I’m guessing started at “0001”. This lens would have been the 246th lens made (0246).
