Yashica TL Electro X ITS – Integrated Technology System

Have you ever wondered what the ‘ITS’ stood for? For most people, probably not – but if you’re a Yashica Fanatic probably yes.

Yas TLITS LOGO

Yashica TL Electro X ITS from 1973

IMG_20191226_0003

Undated sales brochure for the TL Electro X ITS. By the way, the marketing people had the name ‘Tomioka’ removed from this cover image of the lens – it’s the big empty space on the left side of the lens ring.

After years (yes, years) of searching almost everything Yashica published I’ve come to the conclusion that the intent of the marketing behind this camera was to promote Yashica’s first real system 35mm SLR. No, it doesn’t have an interchangeable back or viewfinder like the Canon F-1 and the Nikon F, but it did have a host of quality lenses and accessories. Oh, and no motor drive.

So ‘ITS’ most likely means ‘Integrated Technology System’ since the TL Electro X was advertised as having a brain – a built-in IC brain with an electronically controlled focal-plane shutter and electronic LED exposure control.

15218536719_13b8308208_o

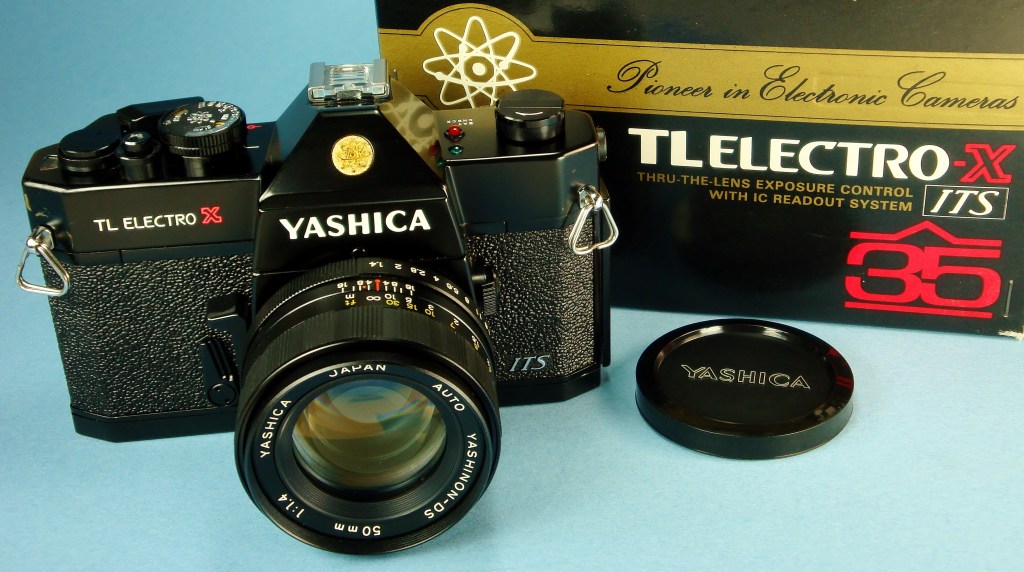

Mint set from September 1973 with the later Yashica (Tomioka) Auto Yashinon-DS 50mm f1.4 lens. Take note of the writing on the box about electronic photography.

IMG_20170228_0003

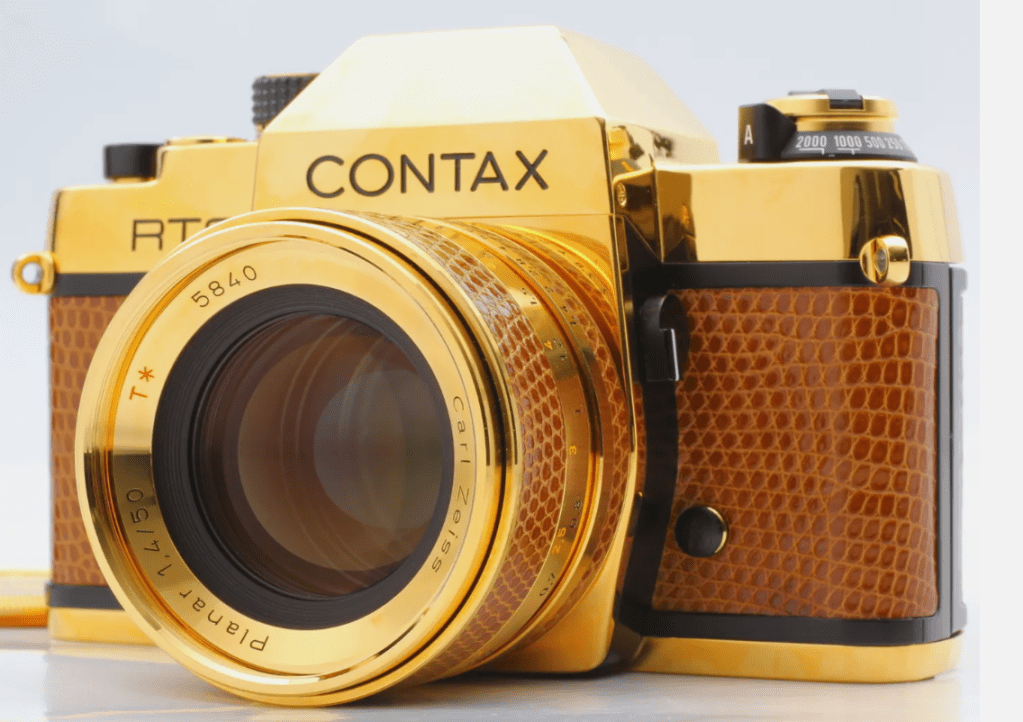

In later years when Yashica teamed up with Contax and Zeiss to develop the Contax RTS – ‘Real Time System’.

Thanks for stopping by! – Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.



Fast Glass from Canon & Yashica

A couple of true heavyweights from Canon and Yashica-Tomioka.

DSCF7434

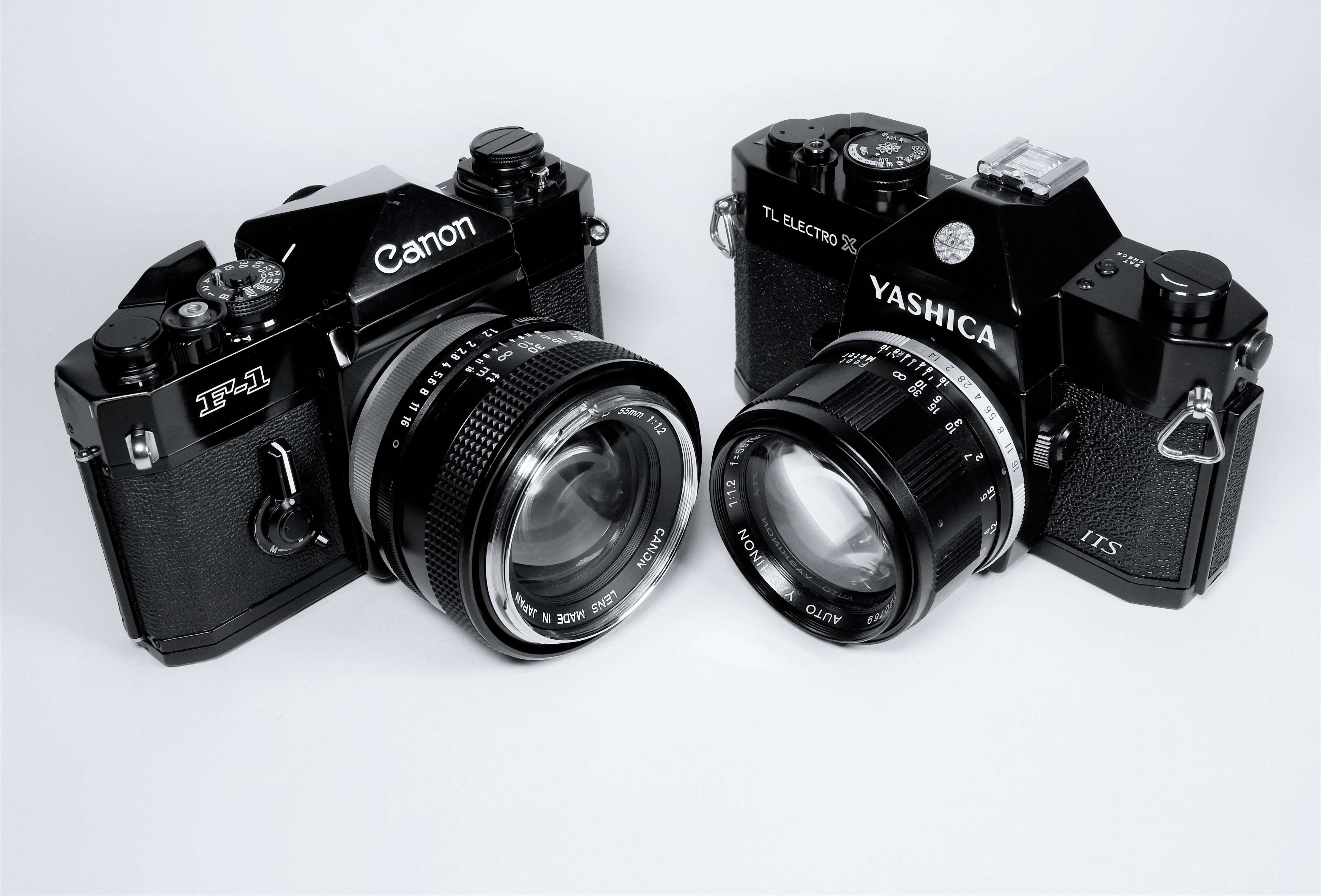

Canon F-1 from 1978 and the Yashica TL Electro X ITS from 1973

The Canon FD 55mm f 1.2 lens is from 1972 which makes it a rather early FD lens. It lacks the S.C. or S.S.C. markings indicating that it’s not coated or at least the marketing people decided not to promote that feature. The Tomioka Optical made lens is an Auto Yashinon 55mm f 1.2 model from very early in the production run. Its serial number puts it about 1968 and it was the 769th made.

DSCF7435

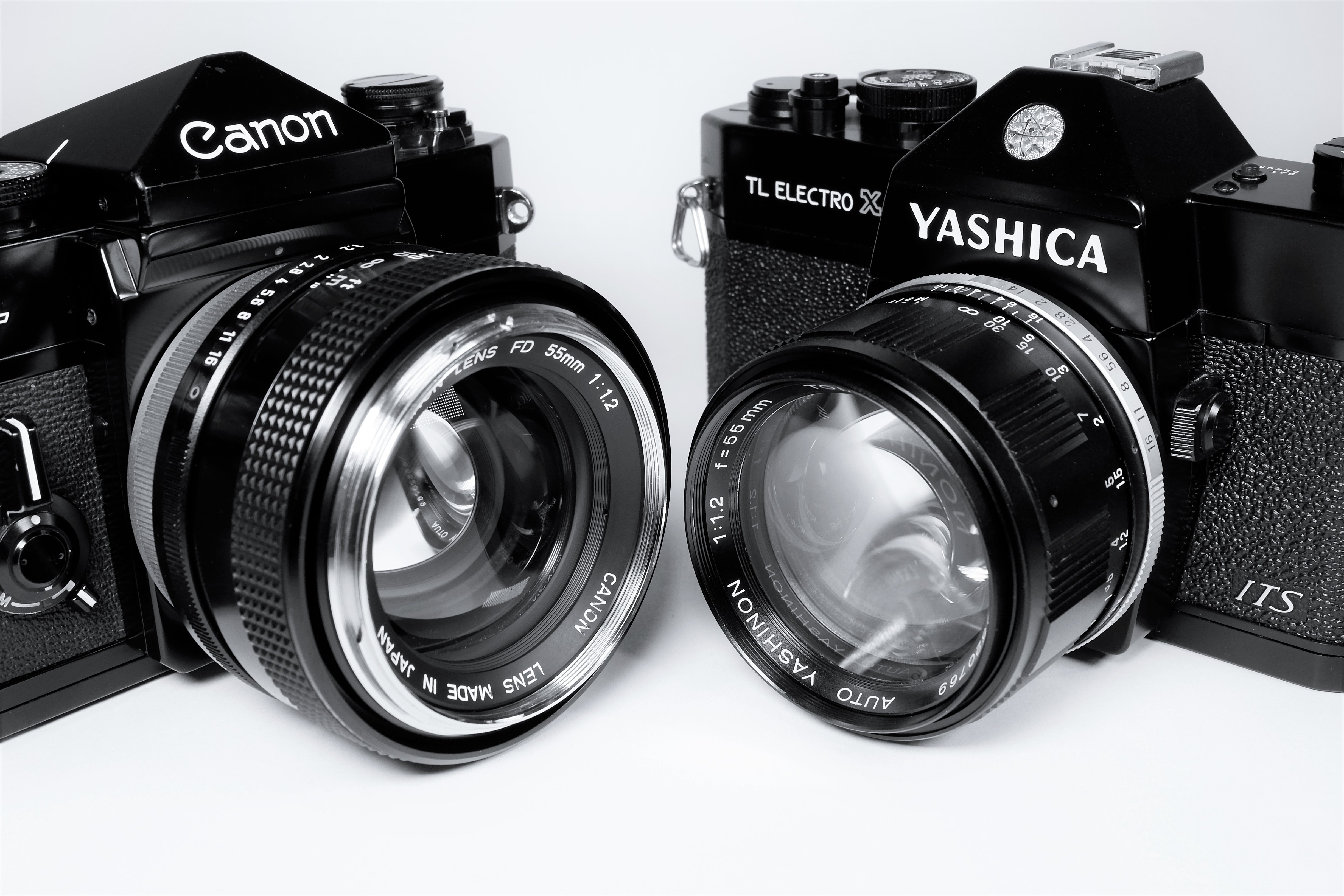

The Canon lens weighs 551 grams vs the Yashica’s 332 grams.

There’s a big difference in weight between the two lenses yet they are both equals in maximum aperture. The Canon takes a 58mm filter and the Yashica uses a 55mm filter.

I hope to be able to do a side by side test of these two lenses using Fotodiox adapters on my Fujifilm X-Series mirrorless digital camera. Stay tuned and thanks for stopping by! – Chris

Studio Camera: Fujifilm X-A10

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

Macro Monday – Monster Glass

20191111_112351

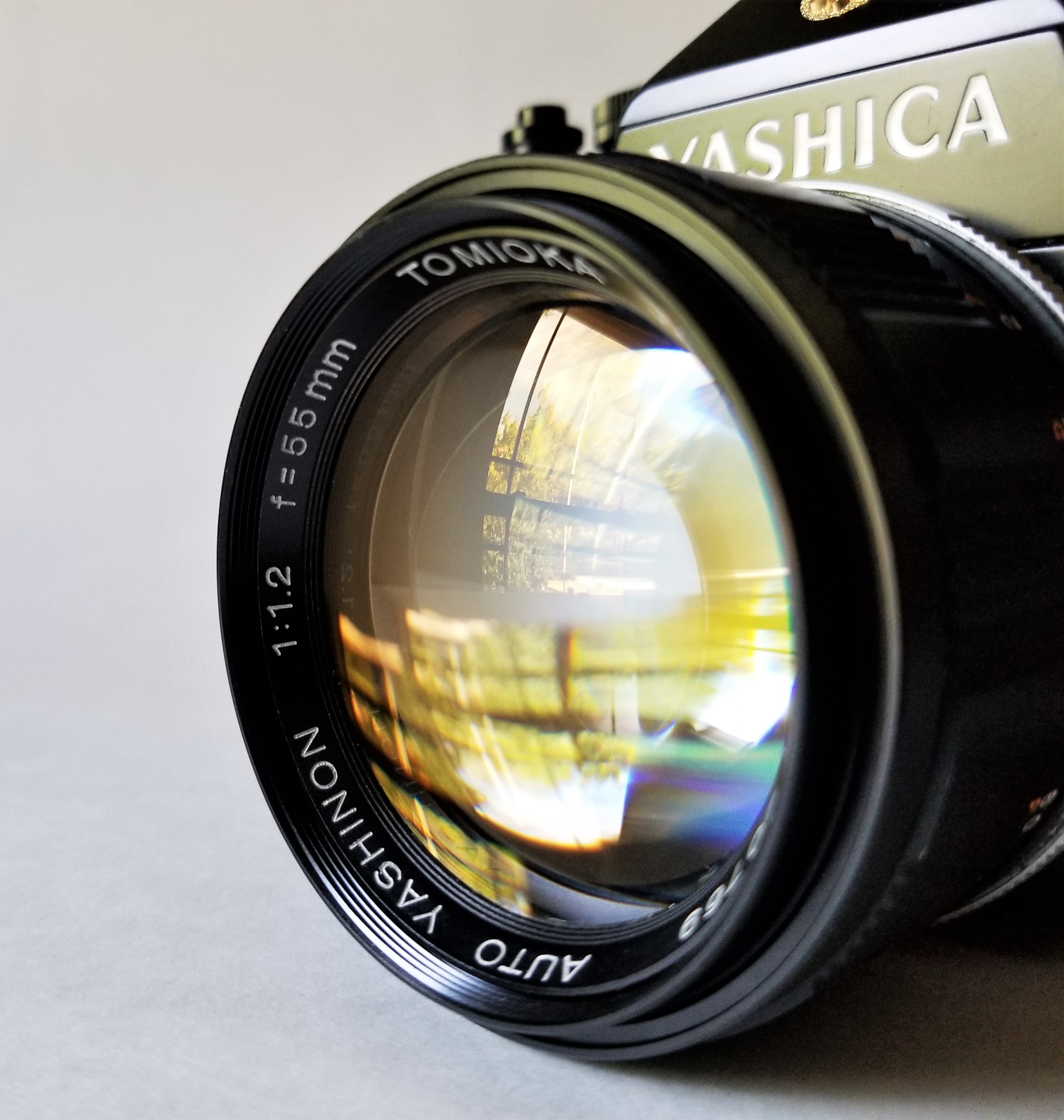

One of the finest fast lenses ever – well pretty close anyway. Made by Tomioka Optical for Yashica (and others) this ultra-fast 55mm f/1.2 lens is a perfect match for the Yashica TL Electro X ITS that it’s mounted on.

Thanks for stopping by! – Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

Yashica’s TL Series of 35mm SLRs

Yashica’s evolution during the 1960s and beyond started with their first TTL (Thru-the-Lens) exposure metered cameras – the much loved TL Series which were introduced right after the successful J Series (Penta J, Reflex 35, J-3, J-5, J-P, J-4, J-7).

It began with the exceptional TL-Super in April 1966. The chronology is as follows based on serial numbers and not based on advertised or previously known release dates.

  • TL-Super          Apr 1966
  • TL                      Nov 1967
  • TL Electro-X    Oct 1968   Type 1
  • TL-E                  Jun 1969
  • TL Electro X    Jul 1969     Type 2
  • ITS                    Dec 1970
  • Electro AX       Mar 1972
  • TL-Electro       Apr 1972
  • FFT                   Jul 1973

The TL Series ended in 1978 with the last TL-Electro made. All of these Yashicas used the M42 screw-in lenses which were made by a variety of lens makers.

It’s easy to decode your camera’s serial number as Yashica used a 3 or 4 digit date code at the beginning of the serial number. As an example, here’s a serial number on a TL-E (90607952)  9 = 1969, 06 = Jun, 07952 = 7,952nd made that month in sequence from 00001.

Here’s a TL (2816946)  2 = Feb, 8 = 1968, 16946 = 16,946th made that month in sequence.

If you’ve got a serial number that you can’t quite decode send it to me at ccphotographyai@gmail.com

Thanks, Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

Tuesday 2’s

Yashica’s first two TLRs – 1953 1954

23866141666_82052528d0_o (1)

Twenty years of Yashica development – 1950s 1970s

15406127075_f309af6603_o (1)

Studio Cameras:     (Top) Samsung Galaxy S4      (Bottom) Sony DSC W-170

Thanks for stopping by! – Chris

BTW, my camera shop is always open at http://www.ccstudio2380.com – lots of specials!

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2019 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

Groundbreaking Cameras from Yashica

yashica 20 years

From the groundbreaking Yashica Flex S to the exciting TL Electro X ITS – over twenty years of development by Yashima-Yashica.

Playing around in the studio – thanks for stopping by! Chris

Please respect that all content, including photos and text, are the property of this blog and its owner, Yashica Pentamatic Fanatic, Yashica Sailor Boy, Yashica Chris.

Copyright © 2015-2018 Yashica Pentamatic Fanatic, Chris Whelan
All rights reserved.

Monster Glass! Tomioka 55mm f1.2

Yashica TL Electro-X ITS with Tomioka Auto Yashinon 55mm f1.2 – the best SLR of its time (1968-1972).

yashica tl its 1.2 logo

yashica bro 1.2

Yashica sales brochure with ‘fake’ serial number on the lens. There’s a possibility that it may have been a prototype lens and was given an odd serial number.

yashica tl its 1.2

One of our all-time favorite SLRs with one of the fastest 55mm lenses made. The Tomioka designed f1.2 is an exceptional lens and we’re happy to have it in our collection. This lens is in the batch of the first 1000 made and carries a low serial number.

IMG_20151220_0002

A super early lens in this German sales brochure – SN 5520124

Thanks for stopping by!

Chris
